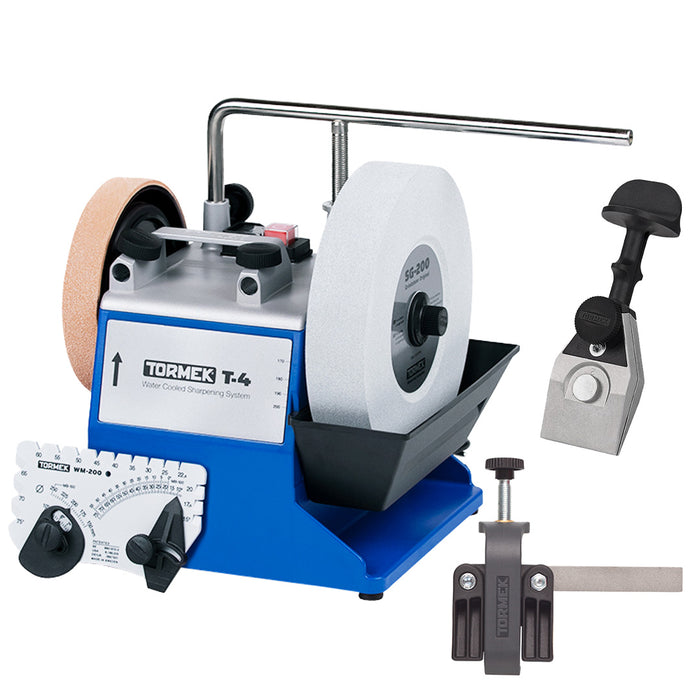

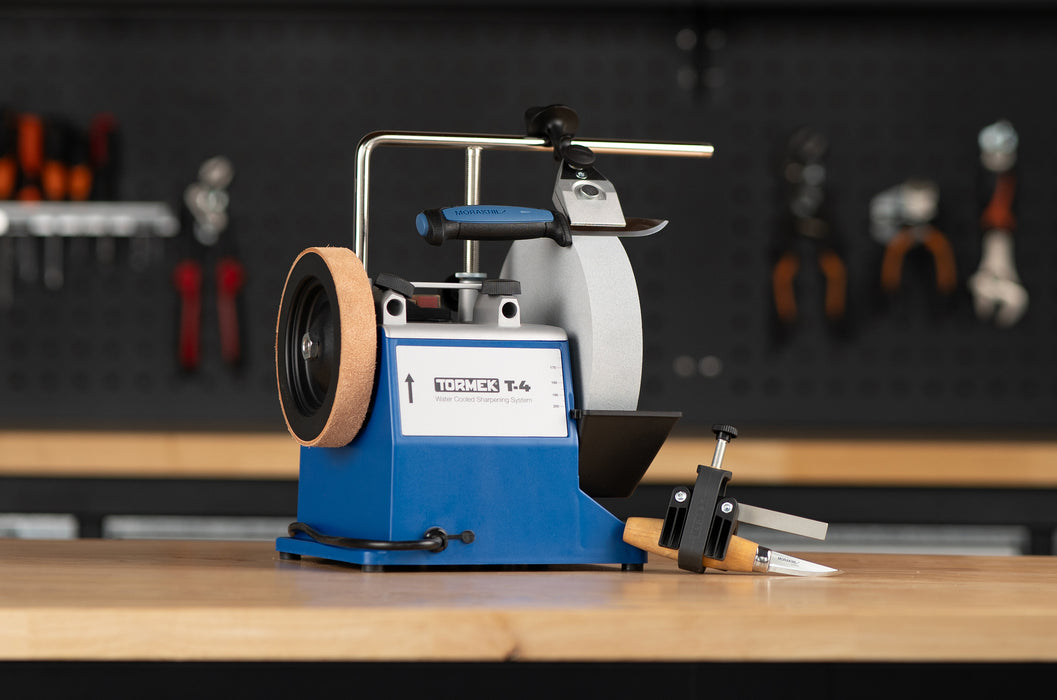

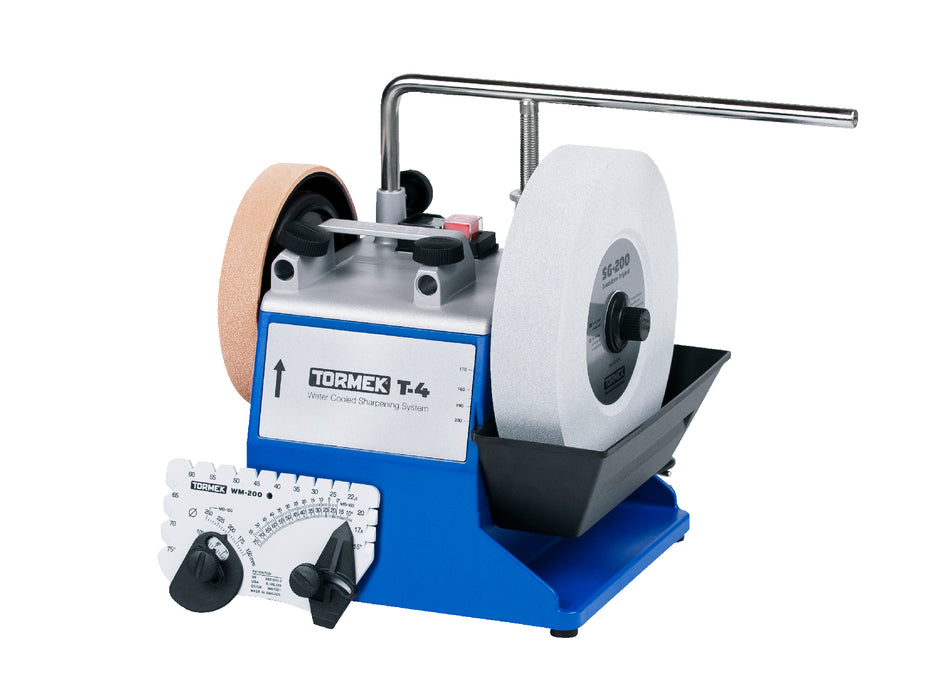

Tormek T-4 Water Cooled Grinding Machine

A cast zinc top, gives the TORMEK T-4 a high level of precision. Vital functions including the motor, the main shaft, and the integrated sleeves for the Universal Support are mounted directly in the zinc casting. This advanced design ensures stability and unbeatable precision for the Universal Support, which is the foundation of the Tormek jig system.

Innovations Include

The Universal Support sleeves are integrated into the cast zinc top and their holes have a new stadium shape. The resulting precision is a 300 % improvement over the previous design.		The handle makes the machine easy to place and move, so you are not tempted to lift the machine with the Universal Support!
Vital parts including the motor and the main shaft are integrated with the zinc cast top.
The machine plate is magnetic, making it a convenient place to store the Tormek AngleMaster (which has magnetic feet).

Ideal for Home and Hobby Use

The T-4 is a high quality machine ideal for home and hobby use which can sharpen all the common edge tools. Configure the T-4 with your choice of jigs according to the tools that you are choosing to sharpen. The jigs are sold separately.

The T-4 model is delivered with these accessories:

Stone Grader	AnglelMaster	Honing Compound
Handbook

Included Free:

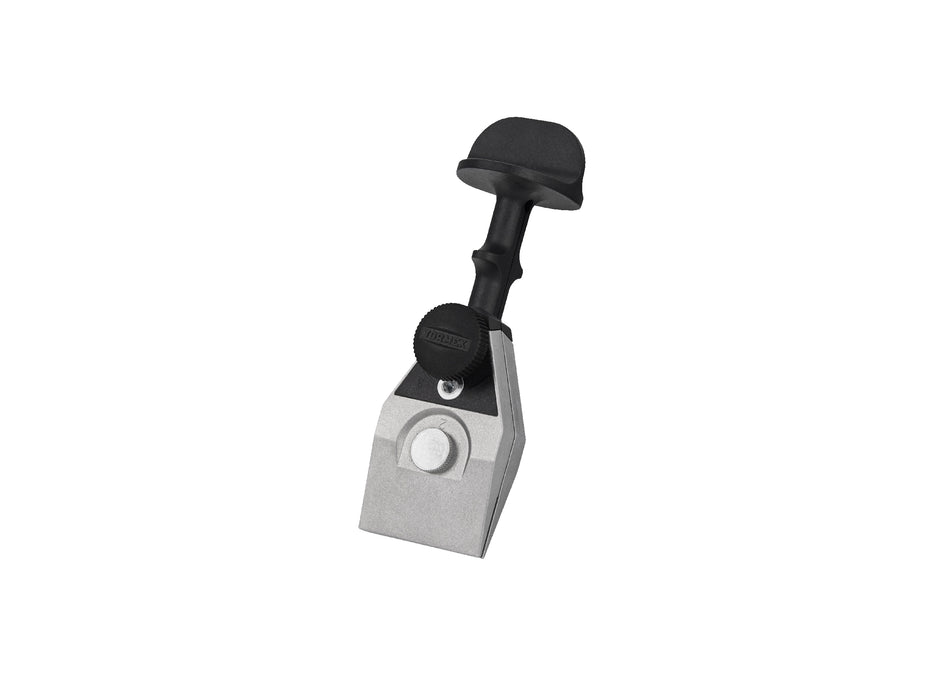

KJ-45 Knife Jig from Tormek!

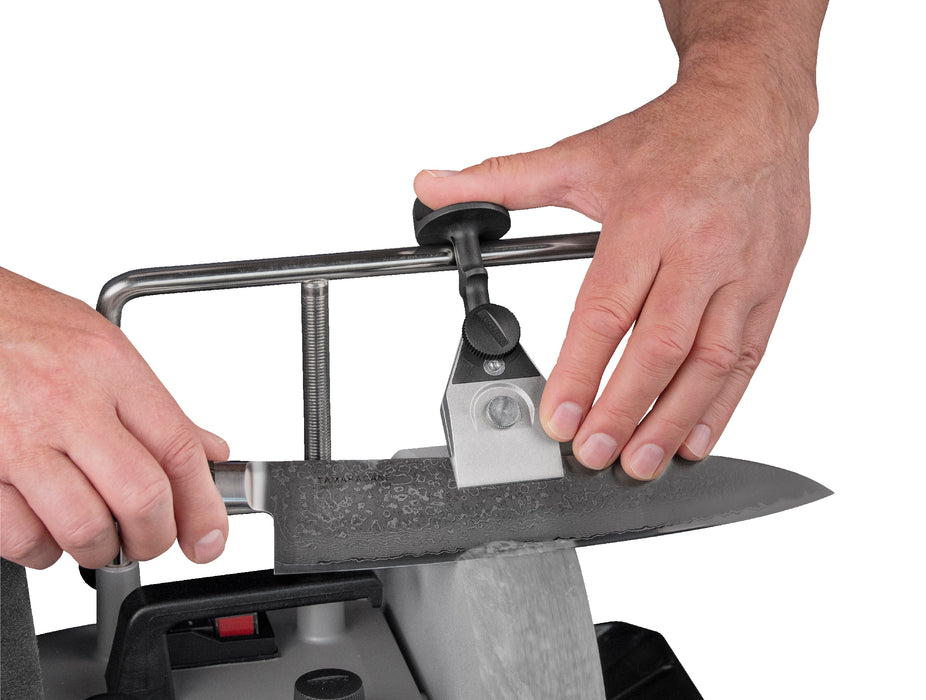

The KJ-45 Centering Knife Jig will hold most types of knives, including household knives, chef's knives, craft knives and knives for hunting or fishing. It also works for many straight drawknives and pruning shears.

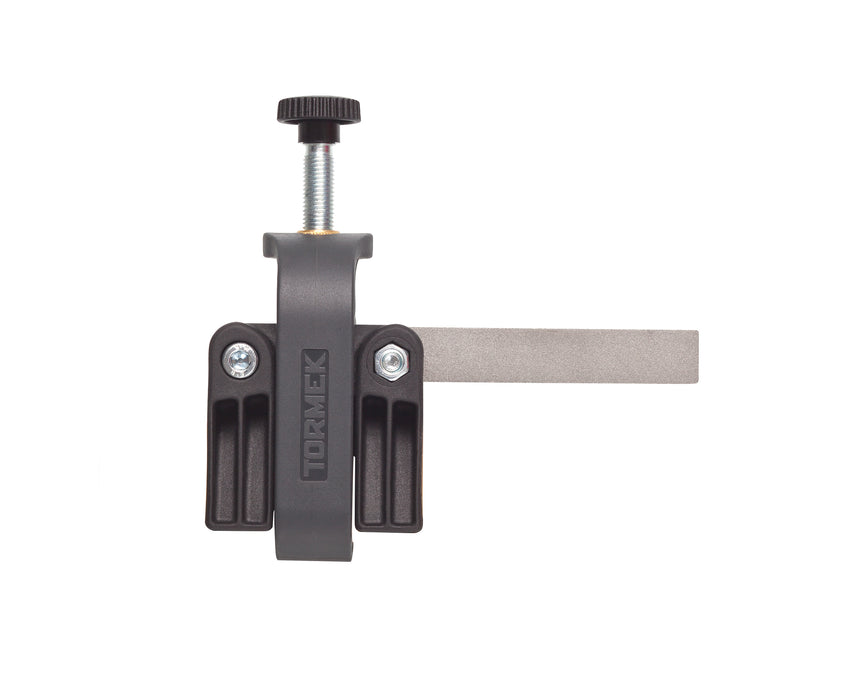

SVM-00 Small Knife Jig from Tormek!

The Small Knife Holder SVM-00 from Tormek works in conjunction with the KJ-45 Knife Jig and opens up the ability to work with complete control on a much wider range of small knives. You can now sharpen knives of different shapes for whittling, chip carving and detail work. Even folding pocket knives can be sharpened with perfect control. Since it is the handle of the knife that is mounted in the SVM-00 holder, there is really no limit to how small a blade you can sharpen.

Housing	Cast Zinc Top and Impact Resistant ABS Plastic
Grindstone	200×40 mm (8"×1 5/8")
Leather honing wheel	145×26 mm (5"×1")
Stone diameter indicator	No
Main shaft, nut and washer in stainless steel	Yes
Carrying handle	Yes
Quick coupling for the honing wheel	No
Motor 115 V 1~ 60 Hz	120 W (input)
Motor duty	30 min/hour
Running speed	120 RPM
Width Depth Height	230 mm (9 1/16") 200 mm (7 7/8") 260 mm (10 1/4")
Weight excl. packing	17.6 lbs
Delivered With: - Standard Grindstone SG-200 - Leather Honing Wheel LA-145 - AngleMaster WM-200 - Honing Compound PA-70 - Handbook - Stone Grader SP-650	Included Included Included Included Included Included
Optional grindstones - Japanese Water Stone - DC-200 Coarse Diamond Wheel - DF-200 Fine Diamond Wheel - DE-200 Extra-Fine Diamond Wheel	Available - Sold Separately Available - Sold Separately Available - Sold Separately Available - Sold Separately
Warranty	5 years + additional 3 on registration for home use 2 years for professional use

This motor is designed to work on 120V, we do not offer any 220V models and are unable to ship electric sharpeners outside the USA.

Q. What is the difference between the T4 and the T8?

A. Everyone wants to know which model they should purchase. This chart makes the comparison between the T4 and the T8 very clear cut. Tormek T8 vs. T4 Comparison

Q. Does the T-4 come with any sharpening jigs?

A. This model includes the Tormek KJ-45 Centering Knife Jig and the Tormek SVM-00 Small Knife Jig. A $128 value.
