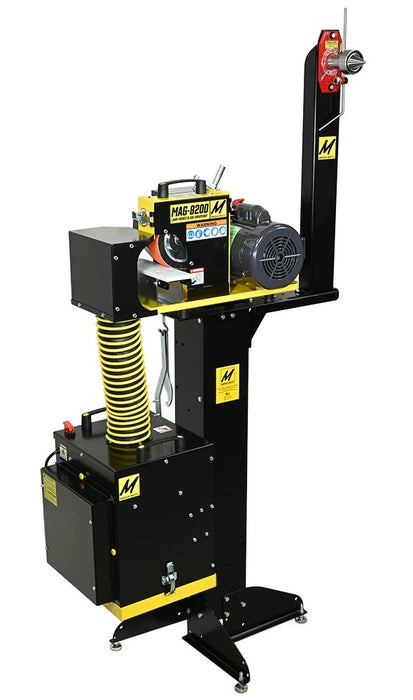

A Professional Belt Grinder Lawn Mower Blade Sharpening System with Dust Collection
This kit (AKA Magna-Matic System 8) has everything you need to professionally sharpen lawn mower blades with an abrasive belt sharpener. A 1hp grinder, blade balancer, and stand with all the attachments needed to mount everything.
Choose Flat or Modular Worktable
There are two variants of the System 8 to choose from:

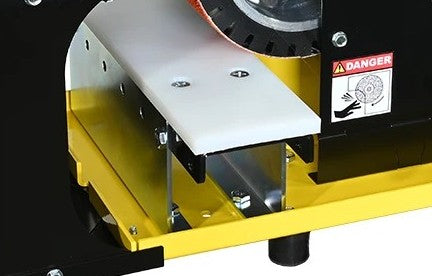

- The MAG-8200B with Flat Work Table - The Flat Work Table allows the sharpening of standard flat lawn mower blades at a fixed 30° angle.

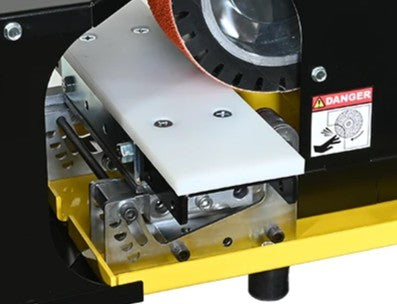

- The MAG-8200BM with Modular Work Table - The Modular Work Table sharpens standard flat mower blades as well as curved mulching blades. It also allows for adjusting the edge angle to 30°, 35°, 40°, or 45°.
The Kit Contains:
MAG-8200B or MAG-8200BM Abrasive Belt Grinder for Lawn Mower Blades
The Magna-Matic Belt Sharpeners use a 2" x 24" abrasive belt to sharpen lawn mower blades. The 2" wide belt makes it easier to stay on the tip of the blade which makes it easier to grind a nice square tip on the lawn mower blade.
The MAG-8200s grind in an upward direction on the cutting edge. This direction is safer because by not pulling the blade into the machine, it eliminates a dangerous pinch point. The upward grinding action also pushes the heat away from the thinnest part of the blade.
MAG-200 Dust Collector
The MAG-200-4H Dust Collector is specifically set up to collect dust from the 8100 sharpener. It features 3 stages of filtration that safely draw live sparks, dust, and grit. Includes 10" of 4" Diameter Hose.
MAG-200-70 Spark Arresting Box
The MAG-200-70 Spark Arresting Box disrupts the flow of sparks and gives them more time to cool off as another layer of fire safety for the MAG-200 Dust Collector. While the MAG-200 has an internal spark arresting filter if you are using a abrasive belt grinder of any kind we recommend this spark arresting box.
Mounting Brackets for Dust Collector
The MAG-200-20-KIT consists of 4 brackets that provide a way to mount a Magna-Matic dust collector to the MAG-10400 Sharpener Service Center Stand. With these brackets, you can mount the MAG-200-4H dust collector to the stand. The brackets come with all the necessary hardware for mounting to a Magna-Matic stand.
Dust Collection Connectors
Two MAG-200-36 Dust Collection Flanges connect the MAG-8100 sharpener to the MAG-220-4H Dust Collector.
MAG-10400 Service Center Stand
The MAG-10400 Service Center Stand is designed to hold your Magna-Matic Grinder, Dust Collector and Blade Balancer in one convenient spot.
MAG-1000 Blade Balancer
The MAG-1000 Blade Balancer mounts on the stand allowing the blade to hang in a horizontal balance position. Strong magnets hold the blade in place. Cone size fits blade hole widths 5/16" to 1-1/2" diameter. Made of the finest precision steel for a long life.
Made in the USA by Magna-Matic
Professional Machines Return Policy
This machine is intended for professional use. As per our Professional Machines Returns Policy, returns will only be accepted for new, unused machines. A 25% restock fee will be charged for new, unused returns. In cases of manufacturing defect, please contact us for replacement information.
Magna-Matic MAG-8200B System 8
